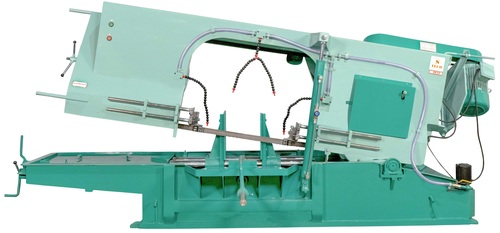

Horizontal Metal Cutting Bandsaw Machine- SM600

Horizontal Metal Cutting Bandsaw Machine- SM600

Product Details:

  • Product Type Metal Cutting Bandsaw Machine
  • General Use Metal Cutting
  • Feature High Efficiency, Good Quality, Low Noise
  • Warranty 6 Months of warranty against any manufacturing defects except for electrical parts.
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 1 INR

Product Specifications

  • 6 Months of warranty against any manufacturing defects except for electrical parts.
  • Metal Cutting Bandsaw Machine
  • High Efficiency, Good Quality, Low Noise
  • Metal Cutting

Trade Information

  • 4-6 Week
  • All India

Product Description

The outcomes got from Horizontal Metal Cutting Bandsaw Machine- SM600 are much better than the outcomes got from different apparatuses, for example, cutting tools. Besides, the significant explanation for the huge distinction between the band saws and different instruments is the blades. Our Horizontal Metal Cutting Bandsaw Machine- SM600 utilizes top quality blades with double bearing edge direct rollers, and numerous other progressed highlights which bring about exact completion.

Features:

  • All materials ranging from very hard to very soft can be cut easily.
  • It can cut round bars, flats, angles, channels, pipes etc.
  • It can cut various types of metals such as Copper, Brass, Aluminium, Mild Steel, Alloy Steel, Stainless Steel, D2, WPS etc.
  • It has efficient clamping vice to hold the job firmly.
  • Precise and easy feed control.
  • Bi-metal blade gives faster, smoother and precise cutting.
  • It comes with the swing cut feature which gives faster cutting and saves precious time of production.
  • All the machines are fitted with spring tension to adjust the load of upper body which facilitates the ease of operation for various size and types of materials.
  • Coolant pump is auto operated along with machine on/off, so no worries of accidental blade damage due to cutting friction.
  • We provide customized feature such as swivelling vice arrangement as per customer requirement.

Technical Specifications:

Cutting Capacity (Round) mm

600

Cutting Capacity (Square) mm

425 x 425

Motor

5 HP, 960 RPM

Coolant Pump

0.25 HP, 2800 RPM

Blade Size (mm)

5800 x 41 x 1.3

Blade Speeds (mtr/min)

22-37-55-75

DImensions L x W x H (mtr)

3.7 x 0.95 x 1.3

Weight (kg)

1300
