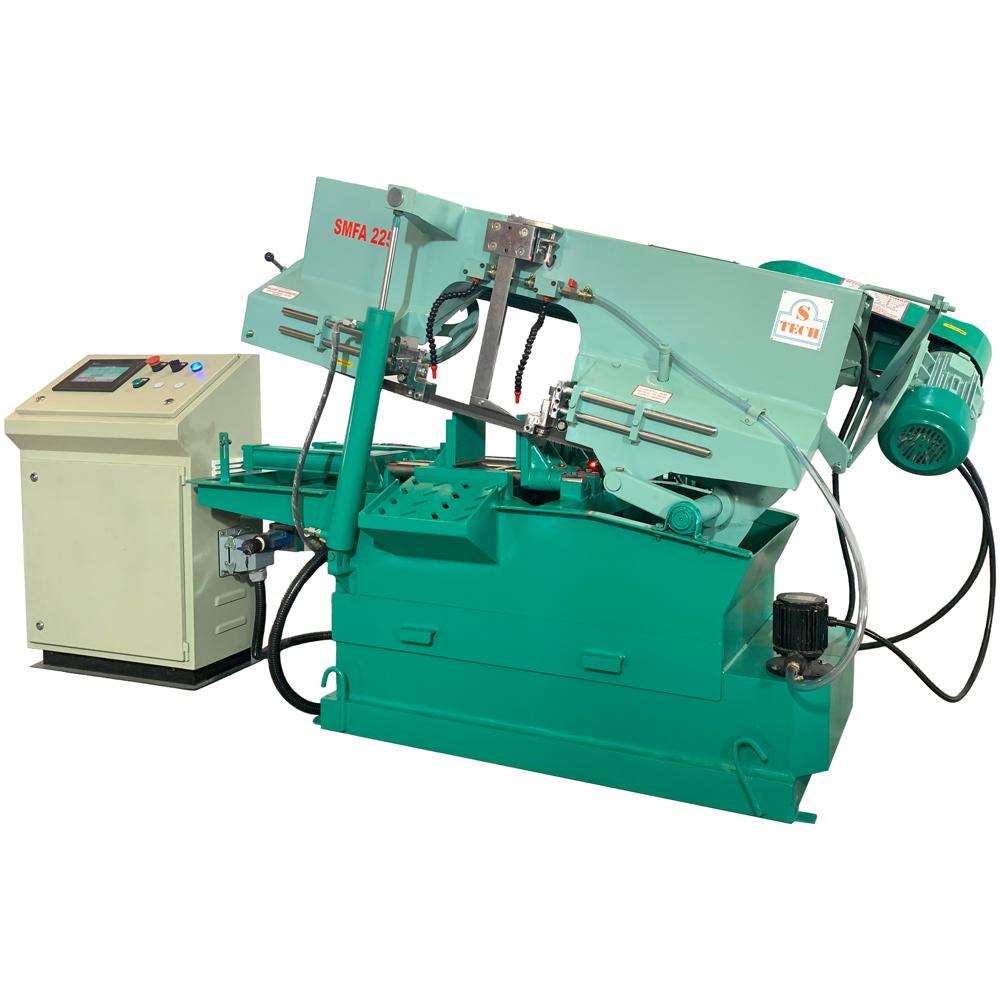

About Fully-Automatic Bandsaw Machine- SMFA225
Technical Specifications:
|
Cutting Capacity (Round) mm
|
225 mm
|
|
Cutting Capacity (Square) mm
|
175 x 175
|
|
Saw Motor
|
1 HP, 1440 RPM
|
|
Hydraulic Motor
|
1 HP, 1440 RPM
|
|
Coolant Pump
|
0.15 HP, 2800 RPM
|
|
Blade Size (mm)
|
5800 x 41 x 1.3
|
|
Blade Speeds (mtr/min)
|
22-37-55-75
|
|
Dimensions L x W x H (mtr)
|
3.6 x 1.0 x 1.3 |
FEATURES:
- Fully automatic bandsaw machine with hydraulic power unit and contol panel.
- Hydraulic clamping-declamping, Hydraulic saw arm up-down and material indexing with ball screw and servo motor.
- Blade breakage detection.
- Material detection sensor.
- Rexroth/Yuken make hydraulic direction control and feed control valves.
- Rapid blade approach till the material height.
- Automatic height adjustment of saw arm according to material size.
- VFD drive available as optional.
- Digital touch inputs with delta HMI.
- Multiple Cutting Length from single job.
- All metals ranging from very soft to very hard like copper, brass, aluminum, mild steel, alloy steel, stainless steel, tool steel can be cut very easily.
- Can cut various sections including round, square, flat, angle, channel, pipes etc.
- Efficient clamping vice to hold the workpiece firmly.
- Precise and easy hydraulic feed control.
- Bi-metal blade gives faster, smoother and accurate cutting.
- Adjustable chrome plated blade guide units.
- Auto machine off at the end of cut.
- Low noise operation.
- Spring tension to adjust the load of saw arm which facilitates the ease of operation for various size and types of materials.
- Auto operated coolant pump.
- 6 months of warranty against any manufacturing defects.
Engineered for Reliable Industrial PerformanceThe SMFA225 Fully-Automatic Bandsaw Machine delivers consistent and accurate cutting, ideal for various industrial sectors. Its mild steel construction provides robustness for heavy-duty tasks, while the semi-automatic operation minimizes user intervention. The clearly defined dimensions enable easy installation in workshops or manufacturing units, ensuring efficient space utilization.
Seamless Cutting with Fully-Automatic ControlsThis machine stands out with its fully-automatic control system, simplifying the cutting process and enhancing safety. Operators benefit from straightforward controls that boost productivity and reduce manual effort. The SMFA225 is an excellent investment for businesses seeking lower operational costs and improved workflow efficiency in their industrial operations.
FAQ's of Fully-Automatic Bandsaw Machine- SMFA225:
Q: How does the fully-automatic control system in the SMFA225 Bandsaw Machine enhance its operation?
A: The fully-automatic control system enables the machine to perform cutting tasks with minimal manual intervention, improving efficiency and maintaining consistent quality throughout the process.
Q: What types of materials can the SMFA225 Bandsaw Machine cut, and what is its primary application?
A: Designed from mild steel, the SMFA225 is well-suited for cutting a variety of metal and non-metal industrial materials, making it ideal for manufacturing, fabrication, and other heavy-duty industrial applications.
Q: When is the SMFA225 Bandsaw Machine typically used in the manufacturing process?
A: The SMFA225 is primarily utilized during material preparation and cutting phases, streamlining the fabrication workflow by accurately sizing raw materials before assembly or further processing.
Q: Where can I install the SMFA225 in my facility?
A: Due to its compact dimensions (3.6 x 1.0 x 1.3 ft), the machine can be conveniently installed in industrial workshops, manufacturing plants, or fabrication units with limited space.
Q: What is the operation process of the SMFA225 Bandsaw Machine?
A: Operators load the material, select the cutting parameters, and initiate the automatic cycle. The machine then manages the cutting sequence under minimal supervision, ensuring precise and uniform results.
Q: How do I benefit from using a fully-automatic bandsaw machine rather than a manual one?
A: Adopting a fully-automatic machine like the SMFA225 reduces manual labor, increases output consistency, shortens production time, and enhances operational safety compared to manual alternatives.
